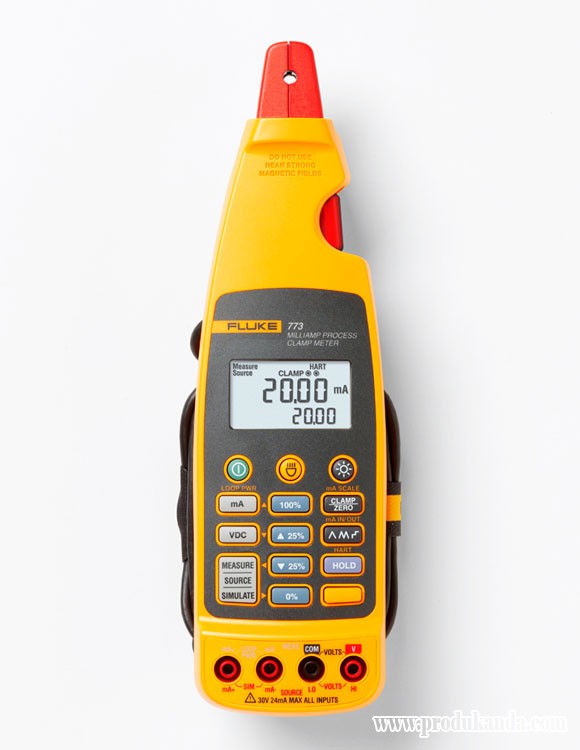

Fluke 773 Milliamp Process Clamp Meter

NOW YOU CAN TROUBLESHOOT AND REPAIR 4-20 MA LOOPS WITHOUT BREAKING THE LOOP or BRINGING DOWN THE SYSTEM

INSTRUMENT FEATURES

The Fluke 773 is designed to save you time, and money, by eliminating time wasting activities. Now you can troubleshoot and repair 4-20 mA loops without breaking the loop or bringing down the system.

The hand-held, battery-operated Fluke 773 Milliamp Process Clamp Meter can be used in troubleshooting transmitters, valves, PLC and DCS I/O. Unlike conventional clamp meters, the Fluke 773 features a remote jaw that is connected to the main body via extension cable.

Fluke 773 mA Clamp Meter Features

Best in class 0.2% accuracy.

0.01 mA resolution and sensitivity.

Measure 4 to 20 mA signals without 'breaking the loop'.

Measure mA signals for PLC and control system analog I/O.

DC voltage measurement to verify 24V power supplies.

Detachable clamp with extension cable.

Measure 10 to 50 mA signals in older control systems using the 99.9 mA range.

Automatically change the 4 to 20 mA output for remote testing.

Measure 4 to 20 mA signals with in-circuit measurement.

Source 4 to 20 mA signals for testing control system I/O or I/Ps.

mA output linear ramp or 25% step output.

Dimensions: 44 x 70 x 246mm.

Weight: 410g, (14.4 oz).

Included Accessories:

Soft carrying case, test leads, alligator clips, hanging strap and Fluke 773 user’s manual
