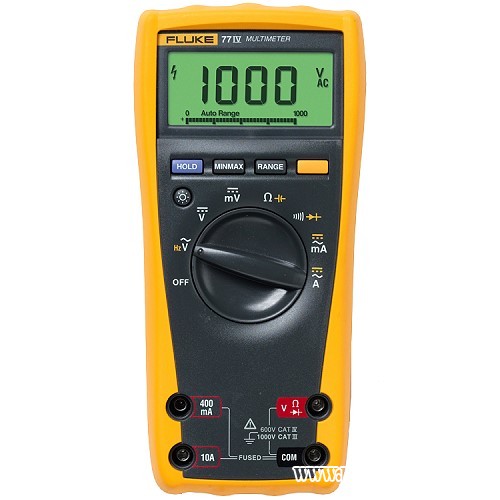

Fluke 77 Series IV Industrial Troubleshooting Multimeter
THE FLUKE 77-IV DIGITAL MULTIMETER HAS THE FEATURES NEEDED TO REPAIR MOST ELECTRICAL AND ELECTRONIC PROBLEMS
INSTRUMENT FEATURES
The Fluke Model 77 Series IV is a battery-powered, average responding-rms indicating multimeter, with a 6000-count, 3 3/4-digit display, and a bar graph.
This meter meets CAT III and CAT IV IEC 61010 standards. The IEC 61010 safety standard defines four measurement categories (CAT I to IV) based on the magnitude of danger from transient impulses. CAT III meters are designed to protect against transients in fixed-equipment installations at the distribution level; CAT IV meters are designed to protect against transients from the primary supply level (overhead or underground utility service).
The Fluke 77 IV is simple to use and has significant improvements over Fluke's original 70 Series with more measurement functions, conformance to the latest safety standards, and a much larger display that's easier to view.
Fluke 77 IV Series Digital Multimeter Features
Meets 1000V CAT III & Category IV 600V safety standards.
Voltage DC Range: 6.000V - 1000V.
Voltage AC Range: 600.0 mV - 1000V.
Amps AC Range: 60.00 mA - 10A.
Amps DC Range: 60.00 mA - 10A.
Resistance Range: 600.0Ω - 50MΩ.
Large display.
Backlight for work in dim areas.
Min / Max to record signal fluctuations.
Auto and Manual ranging.
Dimensions: 4.3cm (H) x 9cm (W) x 18.5cm (L).
Weight: 420g.
Included Accessories:
Test leads & Fluke 77 IV users manual.
