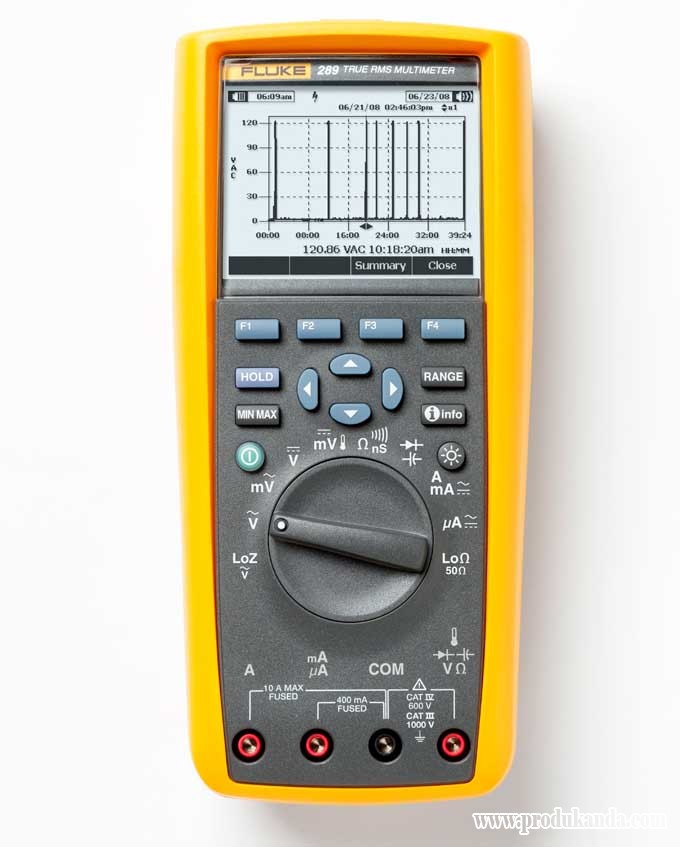

Fluke 289 True-RMS Datalogging Graphical Multimeter

NEW DIAGNOSTIC FUNCTIONALITY FOR MAXIMISING PRODUCTIVITY IN THE PLANT

The Fluke 289 packs more accuracy and convenience into a handheld multimeter than ever before.

INSTRUMENT FEATURES

The Fluke 289 is the next generation high performance industrial logging multimeter designed to solve complex problems in electronics, plant automation, power distribution, and electro-mechanical equipment. With the ability to log data and review it graphically on-screen, you can solve problems faster and help minimize downtime. Let the 289 be your watchdog for systems or processes while you are off solving other problems.

The Fluke 289, with its large 50,000 count, VGA display with white backlight, lets you display multiple sets of measurement information simultaneously.

Fluke 289 True-rms Logging Multimeter Features

True RMS Measurement.

Bandwidth: 100 kHz.

Voltage Ranges: 50mV,500mV, 5V, 50V, 500V, 1000V.

Current Ranges: 500µA, 5000µA, 50mA, 400mA, 5A, 10A.

Resistance Ranges: 500Ω, 5kΩ, 50kΩ, 500kΩ, 5MΩ, 50MΩ, 500MΩ.

Frequency: 99.999Hz, 999.99Hz, 9.9999kHz, 99.999kHz, 999.99kHz.

Motor Winding & Low Ohm Measurement Range.

Min / Max / Average with Time Stamp (Records Signal Fluctuations).

50,000 count digital display.

Logging function with TrendCapture.

Records Events & Trends.

Internal Memory.

F1 - F4 Soft Keys / User Functions Menus.

I-info Button / On Board Help Screens.

Multilingual Interface.

Overvoltage category: CAT III 1000 V / CAT IV 600 V safety rated.

Dimensions: (HxWxL) 22.2cm x 10.2cm x 6cm.

Weight: 870.9g (28 oz).

Included Accessories:

Fluke 289 Manual, batteries, TL71 Silicone Test Leads, Probe Holder, two AC72 Alligator Clips.
