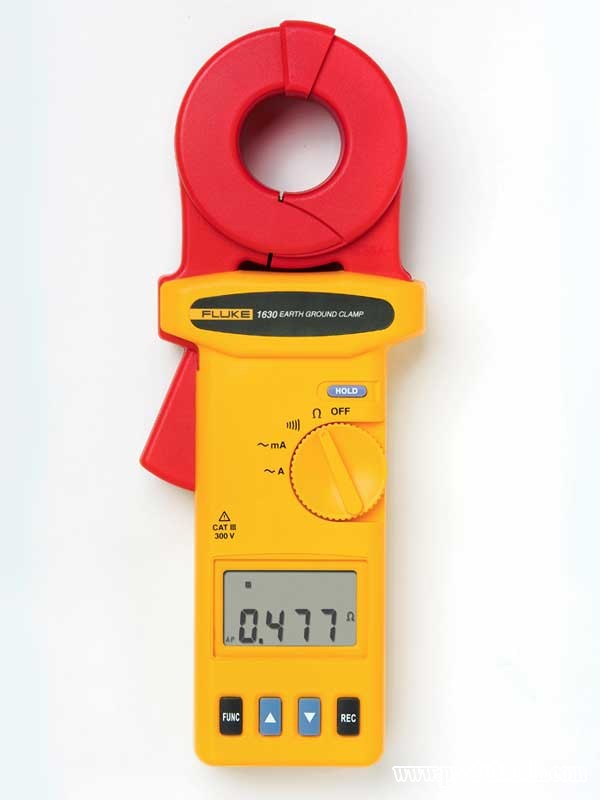

Fluke 1630 Earth Ground Clamp
THE RUGGED AND COMPACT DESIGN MAKES THE FLUKE 1630 EASY TO USE IN SMALL PLACES AND HARSH ENVIRONMENTS
INSTRUMENT FEATURES
The Fluke 1630 Earth Ground Clamp is a hand-held battery-operated clamp that measures the ground resistance of a ground rod without using auxiliary ground rods. The 1630 can be used in multi-grounded systems without disconnecting the ground under test.
The Fluke 1630 uses the Stakeless testing method, which eliminates the need to disconnect parallel ground rods and find suitable locations for placing auxiliary ground stakes. This saves time and enables users such as industrial and utility electricians, and field service electricians and contractors, to perform earth ground loop tests in locations where it is not possible to use other techniques, including inside buildings or on power pylons. The Clamp can be used in the following applications: Earth resistance testing of high voltage pylons, buildings, cell phone substations and RF transmitters and the inspection of lightning protection systems.
Fluke 1630 Earth Ground Clamp Features
Wide ground loop resistance range.
Display: 9999 digit liquid crystal display with special symbols.
Operating Humidity: Less than 85° RH.
Conductor Size: 35 mm (1.38 in) approximately.
Measurement of ground leakage current, from 0.2mA to 1000mA.
Wide ac current measurement range from 0.2A to 30A.
User-defined HI / LO Alarm limits.
Data Logging Capacity: 116 records.
Data Logging Interval: 1 to 255 seconds.
Overload Indication: OL.
Measurement Frequency: 3.333 kHz.
Power Requirement: 9 V alkaline.
Safety: 300 V, CAT III pollution degree 2 IEC 61010-1 and IEC 61010-2-032.
Dimensions: 276 mm (L) x 100 mm (W) x 47 mm (H).
Weight: 750 g (1.65 lbs).
Included Accessories:
Carrying case with strap, Resistance test loop, 9V battery & Fluke 1630 Users manual.
