Fluke 1555 10kV Insulation Resistance Tester Kit
UP TO 10KV FOR TESTING A WIDE RANGE OF HV EQUIPMENT INCLUDING SWITCHGEAR, MOTORS, GENERATORS AND CABLES
INSTRUMENT FEATURES
The Fluke 1555 insulation resistance tester, offers digital insulation testing up to 10kV, making it ideal for testing a wide range of high voltage equipment. With data storage and PC interface.
Fluke insulation testers can now conduct the entire range of test voltages specified in IEEE 43-2000 with a best in class, 3 year warranty and CAT IV 600 V safety rating.
Fluke 1555 10kV Insulation Resistance Tester Features
Test voltages up to 10kV provides solutions for all applications.
Selectable test voltages in 50V steps from 250 to 1000V, and 100V steps above 1000V.
CAT III 100 V, CAT IV 600V safety rating.
Voltage breakdown detection alerts.
Memory: 99 memory locations.
Battery life: gives the user over 750 tests between charges.
Ramp function for breakdown testing.
Capacitance and leakage current measurement.
Large digital / analog LCD for easy viewing.
Resistance measurements up to 2TΩ.
Timer settings up to 99 minutes for timed tests.
Enclosure sealing: IP40.
Input overload protection 1000 V ac.
Dimensions: 170 x 242 x 330mm (6.7 in x 9.5 in x 13 in).
Weight: 3.8kg (7.94 lb).

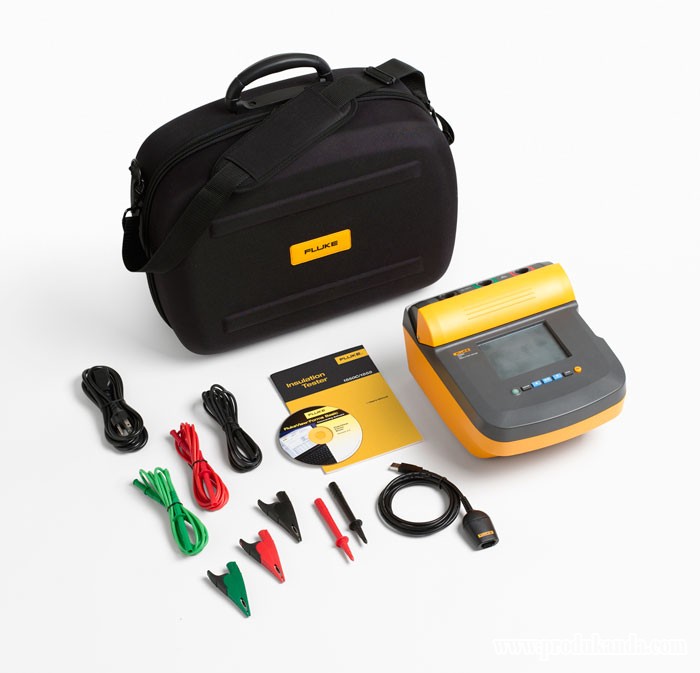

Included Accessories:
Soft Carrying Case, Ruggedised Alligator clips, Test cables with alligator clips (red, black, green), Infrared adapter with interface cable, FlukeView Forms basic CD-ROM, AC power cord, Fluke 1555 users manual on CD-ROM, Quick Reference card and English manual.
