Fluke 1550C 5kV Insulation Resistance Tester Kit

A 5KV INSULATION TESTER THAT SUPERSEDES THE FLUKE 1550B. IDEAL FOR TESTING A WIDE RANGE OF HV EQUIPMENT

INSTRUMENT FEATURES

The completely redesigned Fluke 1550C provides unparalleled digital testing of insulation up to 5kV, making it the ideal choice for everything from simple spot checks to timed and breakdown testing of a wide range of electronic equipment including switchgear, motors, generators, and cables. With the Fluke 1550C insulation tester, you can now carry out tests up to 5kV as specified in IEEE 43-2000.

Test results can be stored to internal memory and downloaded to PC software, assisting with predictive and preventative maintenance programs, designed to identify potential faults before they occur.

Fluke 1550C Kit Features

Safety Rating: CAT III 1000V, CAT IV 600V.

Selectable test voltages: 50V steps from 250V to 1000V and 100V steps above 1000V.

Resistance measurements up to 2TΩ.

Automatic calculation of dielectric absorption ratio (DAR) and polarisation index (PI).

Ramp function for breakdown testing.

Voltage breakdown detection alerts.

Capacitance and leakage current measurement.

Timer settings up to 99 minutes for timed tests.

Display 75 x 105 mm.

Measurement Storage: 99 memory locations.

Long battery life: gives the user over 750 tests between charges.

Dimensions: 170 x 242 x 330mm (6.7 in x 9.5 in x 13 in).

Weight: 3.6 kg (7.94 lb).

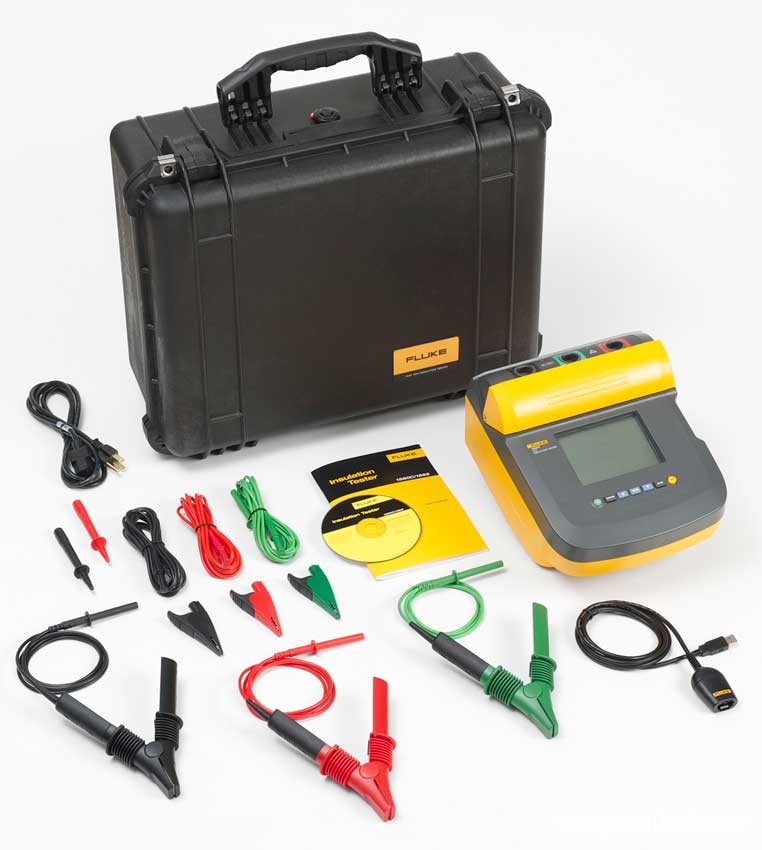

Included Accessories:

Test cables with heavy duty alligator clips (red, black & green), Infrared adaptor with PC interface, FlukeView Forms Basic software on CD ROM, AC Mains Lead, IP67 Hard Carry Case Fluke 1550C Manual on CD ROM, Quick Reference Guide, English Manual and Calibration Certificate.
